Saving, backing up and sharing

Draft Canvas saves your work in your browser as you draw. It does not save it anywhere else. This guide separates what happens on its own from what you have to do, because the second list is what protects you from losing a diagram.

On the desktop? The file is the storage there, and none of this applies. See Draft Canvas Desktop.

What happens on its own#

• Autosave. About 0.7 seconds after you stop editing, the diagram is written to this browser's local database (IndexedDB). If you never pause, it still writes at least every 4 seconds. The status bar says Saved locally when it has. You will only see Saving… if a write is slow.
• Where you left off. Moving the canvas is saved too, so a diagram reopens where you left it.
• Leaving. Closing the tab, reloading, or switching away flushes a final save. That is best-effort: a browser can end a page before storage finishes, so don't rely on it for work you can't redraw. Going Back to your diagrams waits for the save and tells you if it failed.
• Plain records. Diagrams are stored as plain records in the browser's own database, readable by anything that can read this browser profile — the same as a file in your user folder. Earlier versions encrypted them with a key kept in the same profile; those diagrams still open, and are saved plain the next time you edit them. Privacy and SECURITY.md say what that encryption did and why it was retired. A diagram that must be protected at rest is a passphrase-encrypted export, below.
• Two tabs, one diagram. If you edit the same diagram in two tabs, the second tab to save is stopped and the status bar asks which copy to keep: Keep mine or Load the other tab's. Nothing is overwritten until you choose.

What you have to do#

• Back up anything you'd mind losing. Diagrams live in one browser profile on one device. Clearing site data for this site deletes them. There is no recovery: Draft Canvas has no server, so it has no copy. Back up on the Library screen writes every diagram to one draft-canvas-backup-<date>.zip — a plain .draftcanvas file per diagram, plus projects.json with your project folders — and Restore… reads one back. Restoring never overwrites: a diagram whose id is already in the Library arrives as a copy, so an old backup can be restored over a Library that has moved on. When the browser hasn't promised to keep your data and no backup has been made for a week, the footnote under the list says so and offers one.
• Move a diagram to another browser or machine. Export it there, import it here. A diagram made in Chrome is not in Safari, and private windows usually discard their storage when closed.
• Use HTTPS for offline. Browsers install the offline cache only on HTTPS or localhost. Served over plain http:// from another machine, Draft Canvas saves normally but needs the network to load.

If the browser blocks storage altogether (some private modes and embedded browsers), the status bar reads In memory only and a message explains it. Work in that state disappears when the tab closes, so export before you leave.

Reopening a diagram#

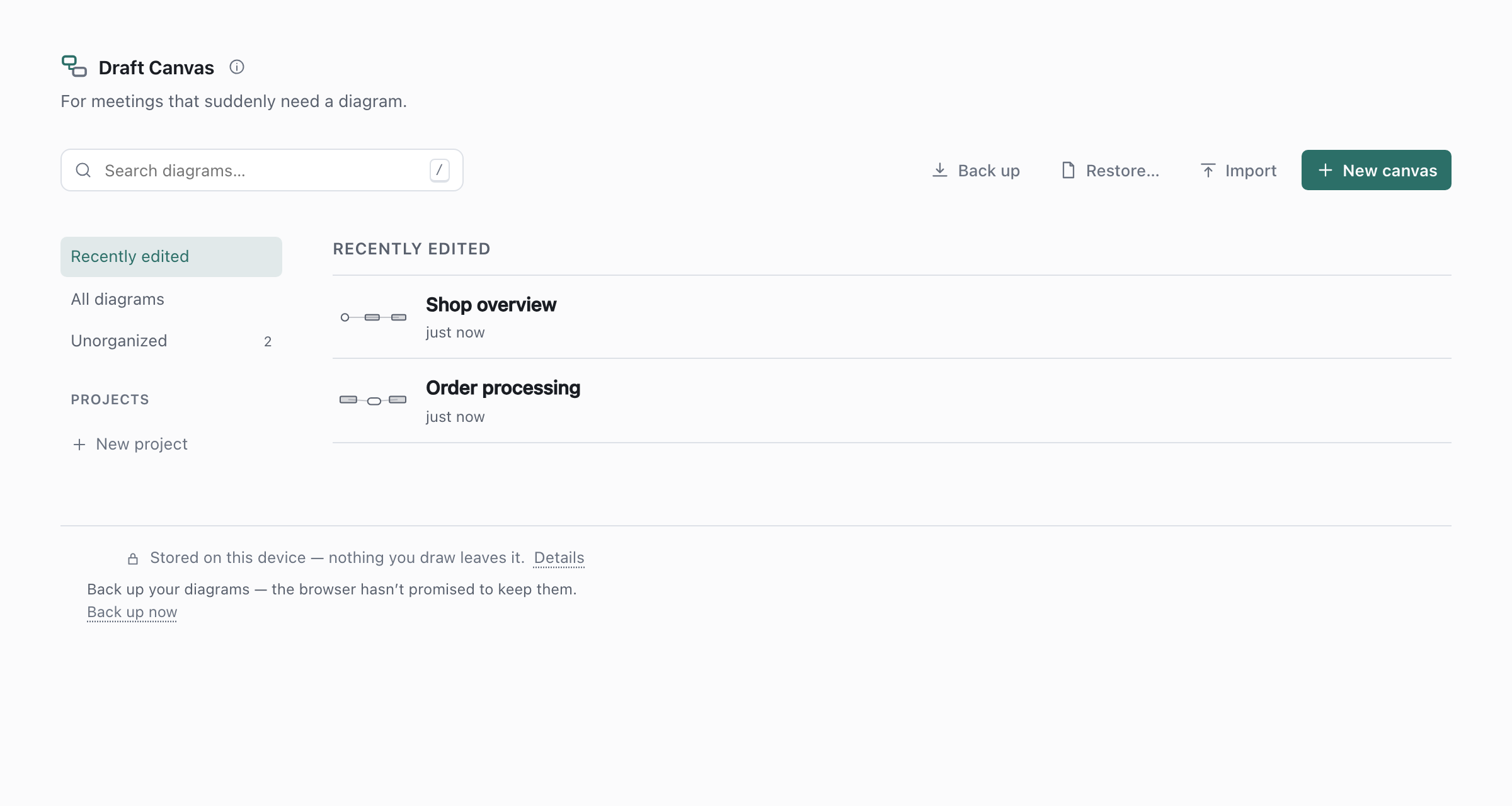

The Library is the list of everything saved in this browser. Click a diagram to open it. Search diagrams… (press / to jump to it) finds diagrams by title or project name, not by what is drawn in them.

The Library also lets you rename, duplicate, delete, and move a diagram into a project. Projects are flat folders for your own tidiness; a diagram is in at most one, and deleting a project moves its diagrams back to Unorganized rather than deleting them.

Export a file#

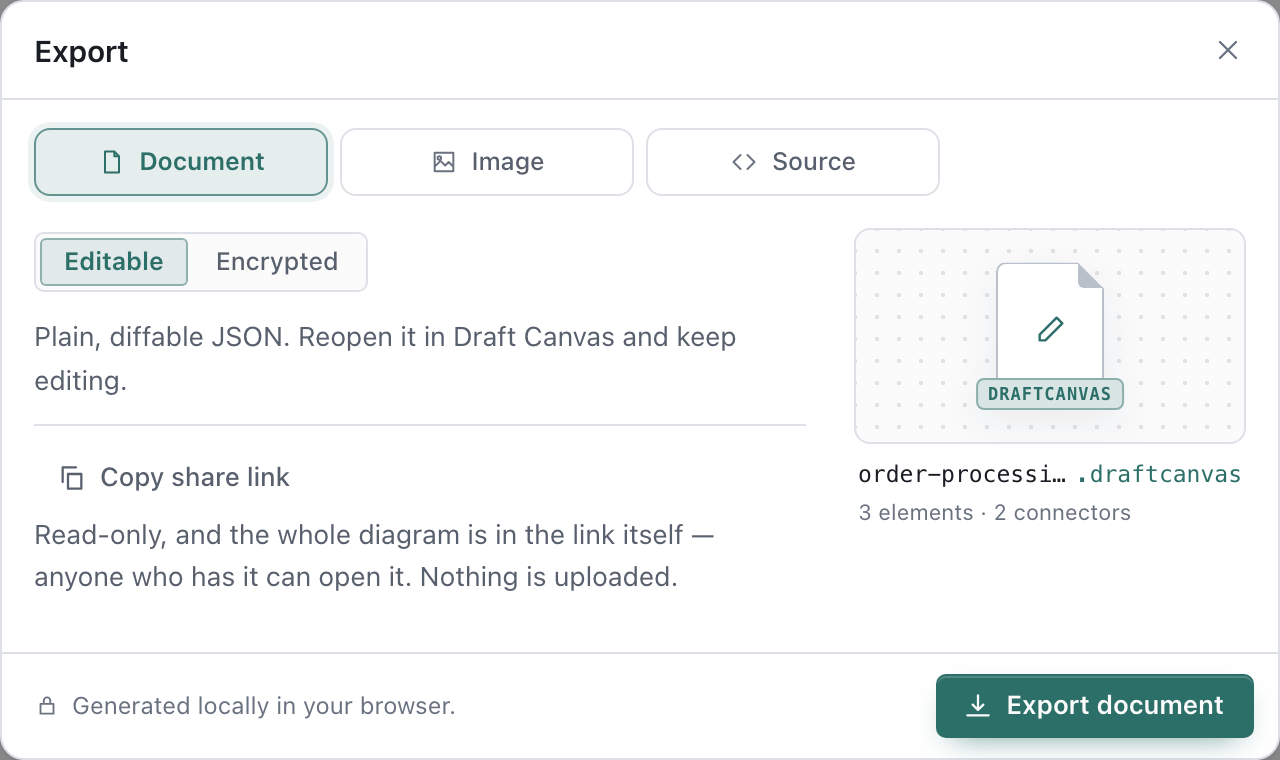

Open Export (⌘⇧E, or Ctrl+Shift+E; ⌘E also works), or run Export… from the command palette. The dialog has four modes (Document comes in two kinds):

Notes on each:

• .draftcanvas holds the whole diagram, including everything you drew inside shapes. A canvas background image travels inside the file when it is 2 MB or smaller (the dialog says when one is too large to come along), and the file doesn't record which project the diagram was in.
• .dcenc asks for a passphrase of at least 8 characters, twice. Draft Canvas never stores it and can't recover it. If it's lost, the file can't be opened by anyone. It uses its own key, unrelated to the one that protects your saved diagrams.
• Image offers a Light or Dark palette, Transparent, and Selection only. PNGs export at 2× unless you pick 1× or 3× beside the format — the preview quotes the pixel size you will get, and says so if a very large diagram has to be fitted to a smaller scale than the one you chose. SVGs are vector. Inside a shape, you choose between that shape's canvas and the whole diagram. A diagram with open points keeps their markers, with a key, unless you untick Open point markers.
• Source reads either your Flows or the Architecture. A sequence diagram (Mermaid or PlantUML) needs a flow — see Getting started for making one. The architecture formats need nothing but shapes: a Mermaid flowchart, C4-PlantUML (each shape's C4 role follows the view's level, the way the Depth map reads it), Structurizr DSL (a workspace with a model and views; rooms inside shapes become containers and components) and draw.io (a .drawio file diagrams.net opens with every shape where you left it, boundaries as containers, one page per room). The panel shows the generated text itself, so what you see is what the file gets. Sequence diagrams have no notation for open points, so those are left out.

Files are named from the diagram's title: Payment Service! becomes payment-service.png. Exporting happens in your browser; the file goes to your browser's normal download flow and nothing is uploaded.

Copy instead of download#

Every image and source export can go to the clipboard rather than a file: Copy sits beside the export button in the dialog, and the command palette has Copy as image (a PNG, for chat and slides), Copy as SVG (the markup as text, for a README or an editor) and Copy source as… (any of the source formats). Where the browser can't put an image on the clipboard — Firefox, or a page not served over HTTPS — the file is downloaded instead and the notice says so.

Editable images#

An SVG or PNG can carry the whole diagram inside it: tick Editable — carries the diagram inside on the Image panel (on by default for SVG, off for PNG; the dialog remembers each). The picture is the same picture to every viewer — the .draftcanvas text sits in an SVG <metadata> element or a PNG text chunk that image viewers ignore — and importing that file into Draft Canvas reopens it as a diagram, every room included. Anyone who has the image has the diagram, so treat an editable image like a .draftcanvas file rather than a screenshot. The background image doesn't travel in an editable image.

Import a file#

In the Library, choose Import and pick a .draftcanvas, .json or .dcenc file — or a Mermaid flowchart (.mmd, .mermaid, or a .md with a ```mermaid block; see Importing a Mermaid flowchart). (On a first run, the button is Import .draftcanvas.) Dropping a file onto the Library, or onto an open canvas, imports it the same way.

• A .dcenc file asks for its passphrase first. A wrong passphrase is reported and nothing is imported.
• If you already have a diagram with the same id, for example because you exported it from this browser, the import arrives as a new diagram; the existing one is never overwritten.
• Imported diagrams open straight away and are saved like any other. They are not put in a project.

Repairs, limits and compatibility#

Draft Canvas repairs rather than refuses. A file with a few broken connectors opens with the rest intact, and a message lists what was dropped, for example Imported with repairs: Dropped 3 connector(s) pointing at nodes that do not exist. Content past the size limits (5,000 shapes, 10,000 connectors, 50 flows, 3 levels of nesting inside shapes) is trimmed the same way, and files over 24 MB are refused.

Files carry a format version. The rules are:

• Older file, newer app: it upgrades when opened. The file you picked isn't modified; the upgraded copy is what gets saved in the Library.
• Newer file, older app: it is refused with a message like This file was made with a newer version of Draft Canvas, rather than opened and quietly stripped. Reload the page to get the current version. An installed offline copy can lag until it reloads.
• A file that isn't a Draft Canvas document is refused with an explanation.

The full contract is in the schema reference.

Importing a Mermaid flowchart#

A Mermaid flowchart or graph becomes an editable diagram: pick the file in the Library's Import, drop it onto the Library or a canvas, or paste the text (⌘V / Ctrl+V) onto an open canvas. A file opens as a new diagram named after the file (a title: line in Mermaid front matter wins). Pasted or dropped text lands in the diagram you are editing, beside what is already drawn, selected, as one step — ⌘Z removes all of it. Draft Canvas lays the result out itself; the positions Mermaid would have chosen are not part of the text.

What maps:

What is skipped is named in one message before the diagram opens (Imported — 3 things Mermaid said that Draft Canvas doesn't draw: classDef, style, click): classDef, class, :::class, style, linkStyle, click, accTitle/accDescr, direction inside a subgraph, @{ shape: … } node syntax (drawn as a plain shape), invisible ~~~ links, arrows to or from a subgraph itself, circle and cross arrowheads (drawn as plain arrows), two-headed arrows (drawn one way), RL and BT (drawn left to right and top to bottom), and HTML inside labels (the tags are removed). Other Mermaid diagram kinds (sequenceDiagram, classDiagram, …) are refused with a message naming the kind.

A flowchart is one import's worth of work: up to 300 shapes, 600 arrows and 60 subgraphs, labels up to 120 characters (80 on arrows and subgraphs; longer ones are shortened), and text up to 512 KB. Past any of these the import is refused with the limit it hit, so a hostile file is never laid out.

Share a diagram#

There are no accounts and no server, so sharing means handing someone the diagram itself. Pick whichever of these fits:

• Send a link. Run Copy share link from the command palette (⌘K), or open Export → Document and press Copy share link. The whole diagram — every room inside a shape included — is compressed into the link itself, after the #; nothing is uploaded anywhere. Whoever opens it sees the diagram read only: a banner says so, the title can't be changed, the create tools are gone, and nothing they type or drag changes it. Make an editable copy in that banner saves it into their own Library as a new diagram, and from there it's theirs to edit. The link is a copy, not a connection: edits you make later don't reach it, and theirs don't reach you.

  Anyone who has the link has the diagram, as plainly as if you had sent the file, and the link never expires — there's no server to expire it. Chat apps and browsers keep links, and some fetch them to draw previews. For anything you wouldn't paste into a chat as text, send a .dcenc file instead. A link holds up to 32 KB of compressed diagram, which covers most; a diagram past that is told so and asked to export a file. The background image doesn't travel in a link.

• Send the file. A .draftcanvas is readable by anyone who has it, and opens in the hosted app, a self-hosted copy, or the desktop app. For anything you wouldn't send as plain text, use .dcenc and send the passphrase by a different route.

• Put it in the repository. .draftcanvas is stable JSON with a fixed field order, so an unchanged diagram produces identical bytes and edits show up as small diffs in review.

• Send a picture. PNG for chat and slides, SVG for docs — or Copy as image straight into a chat. An editable image is a picture the recipient can import and keep editing. For a moving walkthrough, present the flow live or screen-record it; there is no animated export.

• Copy shapes between diagrams. ⌘C on a selection and ⌘V in another diagram, even in another tab, brings shapes and their connectors along. Copying puts them on your system clipboard as text, and the app reads the clipboard only when you paste. The first time you use Paste from the context menu or command palette, Draft Canvas asks before reading it. ⌘V doesn't need to.

If something looks wrong#

• A diagram is in the Library but won't open ("That diagram could not be read from local storage"). The stored record is corrupted, or it was saved encrypted by an earlier version and the browser's copy of the key is gone. The Library can still list it because the title is stored separately, but there's no way to recover what was drawn. If you exported a file, import that.
• The Library is empty. Diagrams are per browser profile and per origin: localhost:5180, a Docker copy on :8080 and the hosted site each keep their own. Check you're on the same one, and not in a private window.
• "This browser is out of local storage space." Delete a diagram you no longer need, or export this one first.
• Saving stopped and says another tab updated Draft Canvas. Export your recent changes, then reload.
